Designed to provide the maximum amount of pure suction in a dental system and meet the high-demand needs of dental specialists. Unlike typical dental vacuum systems that must continuously operate to provide instantaneous suction, the PowerMax operates only when the supply tank is lower than the chair-side vacuum demand, saving electricity and helping to promote the overall longevity of the system. This vacuum comes standard with an easy-to-read vacuum gauge, vibration-isolating feet and 24V low-voltage operation for added convenience. For added value, csombine the PowerMax vacuum with the recovery room package for in-room containment and management of oral cavity waste.
Designed for High-Performance
Vacuum power reaches up to 21" Hg

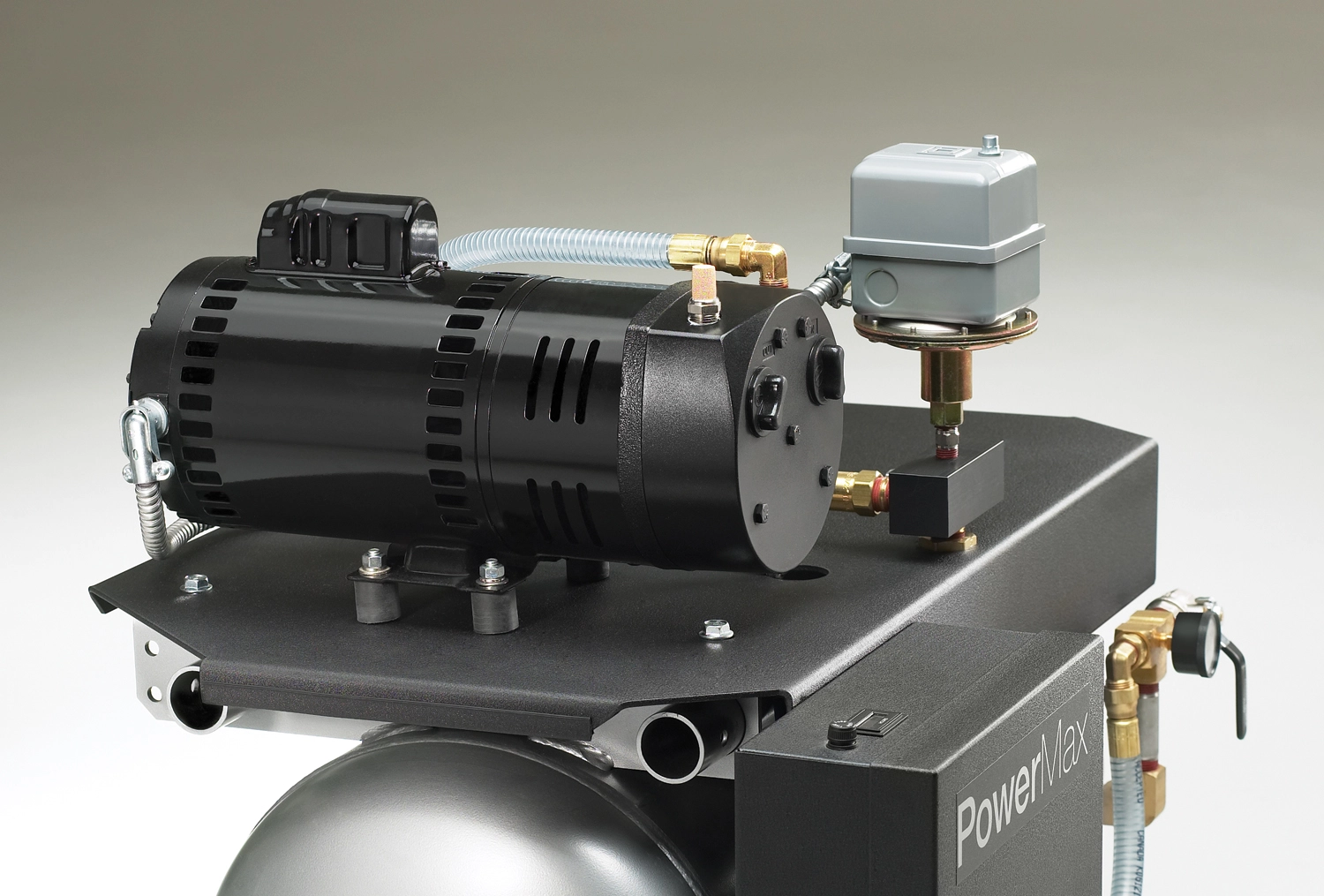

Oil-less rotary-vane vacuum pump provides exceptional reliability
Vacuum supply tank is ASME-certified
Product warranty covers 2 years
Compliance rates at NFPA 99C level 3
Equipment is UL/CUL classified

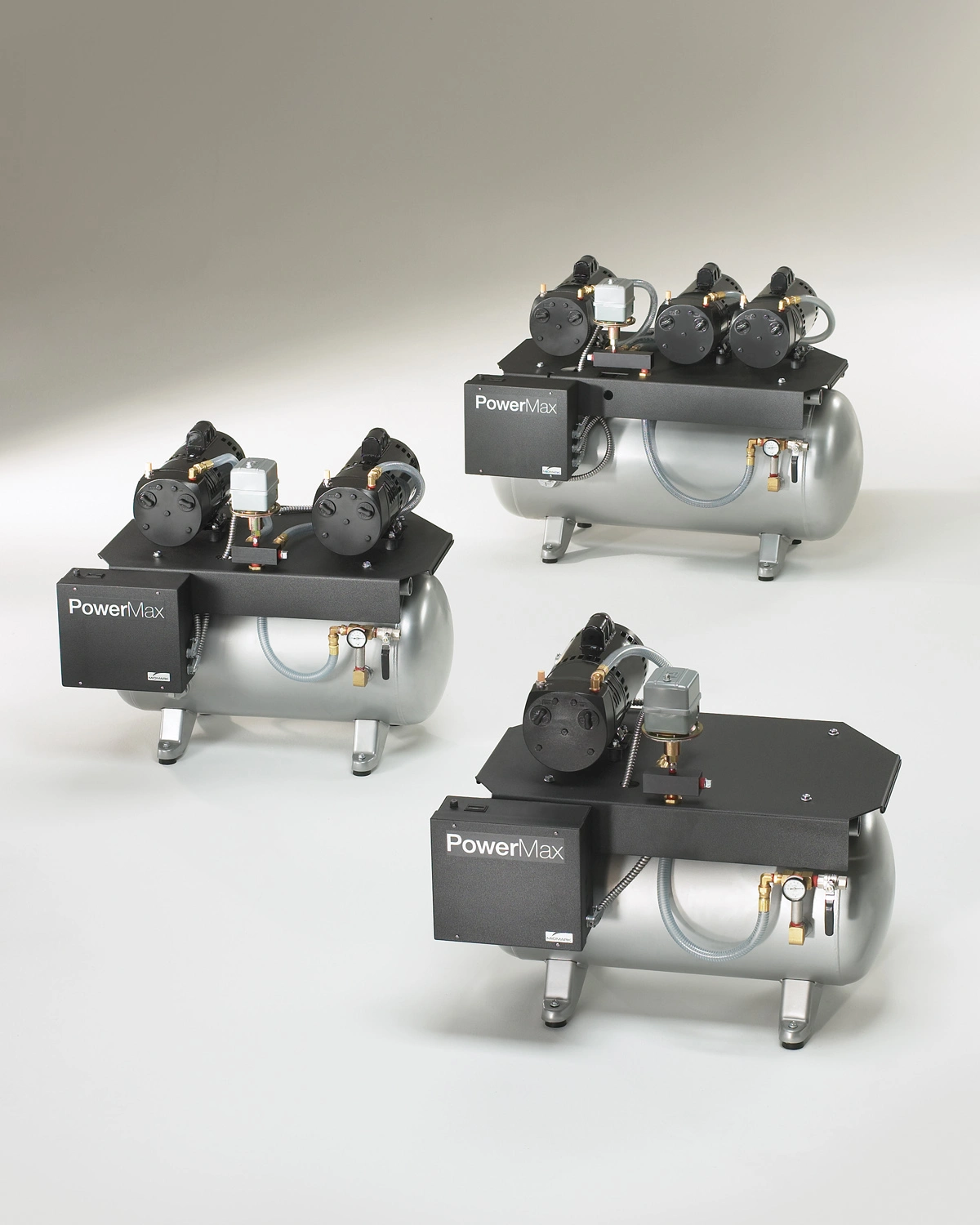

Model: PM-1
Number of users: 1
Total HP: 1 @ 3/4 HP
Size (H x W x D): 31" x 32" x 25"
Tank capacity: 20 gal
User capacity: 1
Electrical: 230 V @ 5.1 A
CFM maximum: 8
Dedicated circuit size: 20 A
Line Frequency: 50/60 Hz
Temperature range (°F): 40-104
Shipping weight: 205 lb
Model: PM-3
Number of users: 2-3
Total HP: 2 @ 3/4 HP
Size (H x W x D): 31" x 32" x 25"
Tank capacity: 20 gal
User capacity: 2-3
Electrical: 230 V @ 9.7 A
CFM maximum: 16
Dedicated circuit size: 20 A
Line frequency: 50/60 Hz
Temperature range (°F): 40-104
Shipping weight: 255 lb
Model: PM-4
Number of users: 3-4
Total HP: 3 @ 3/4 HP
Size (H x W x D): 34" x 38" x 27"
Tank capacity: 20 gal
User capacity: 3-4
Electrical: 230 V @ 14.3 A
CFM maximum: 24
Dedicated circuit size: 20 A
Line frequency: 50/60 Hz
Temperature range (°F): 40-104
Shipping weight: 355 lb
