Artizan® Expressions Central Station

CS109 Central Station
Total length 108.5", height 72"
Round end sink module
Lower midsection drawer module (CS-300)
Lower midsection storage module (CS-600)
Upper pass-thru midsection (CS-200)
Lower equipment end (CS-400)
Upper equipment end (CS-500)

CS109-TB Central Station
Total length 108.5", height 90"
Round end sink module
Lower midsection drawer module (CS-300)
Lower midsection storage module (CS-600)
Upper pass-thru midsection (CS-200)
Lower equipment end (CS-400)
Upper equipment end (CS-500)

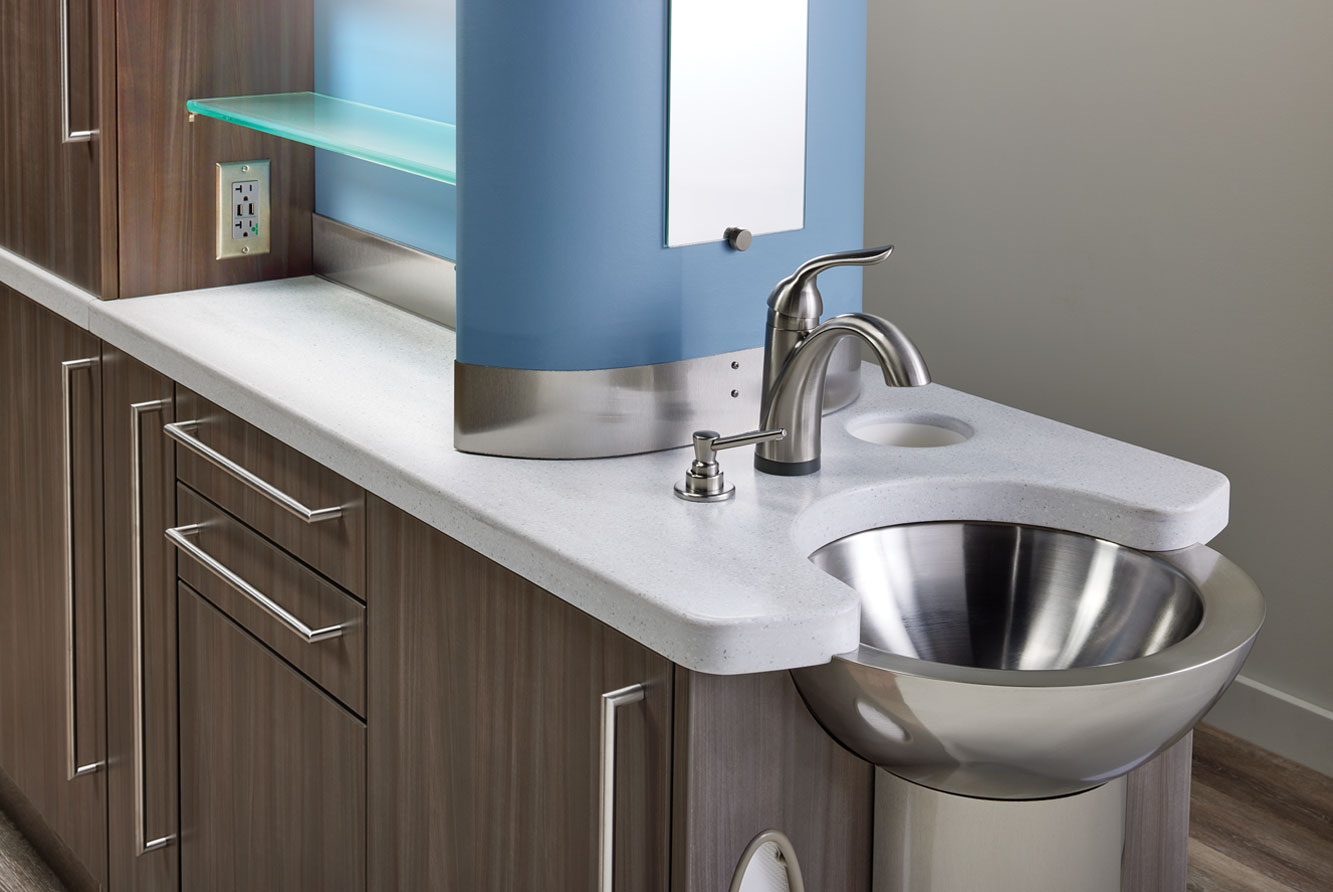

Sink package
Recessed, cantilevered sink with touch/proximity faucet, matching soap dispenser and waste drop

Structure
¾" thick, 42-46 lb medium-density particle board core with thermally fused melamine coating (white); glued wood-dowel frameless construction

Door and drawer fronts
¾" thick, 42-46 lb medium-density particle board core with thermally fused melamine coating (standard color offering) with 3-mm PVC edge-banding

Drawer systems
Soft-close full-extension Blum® Tandembox® Intivo® (Silk White); full-extension steel
ball-bearing slide with 100-lb capacity; ⅝" thick 42-46 lb medium-density particle board core with thermally fused melamine coating (white) on the bottom and back

Hinges
Soft-close concealed European-style 110° opening angle, inset, half- and
full-overlay options

Pulls
Steel, brushed-nickel finish

Base
Seamless 16GA 304 stainless steel with Camar® leg cups and adjustable leveling feet

Standard panel color options
12 cabinet color selections
One-color or two-color tone options
Non-standard panel colors available at additional cost

Standard countertop options
18 Corian® solid-surface colors
Nine quartz colors
Non-standard solid-surface and quartz colors available at additional cost

Upholstered panels
Ultrafabrics® Ultraleather® upholstery material

Blum, Tandembox, Intivo, Camar, Ultrafabrics and Ultraleather are not trademarks of Midmark Corporation and are the sole property of their respective owners.
