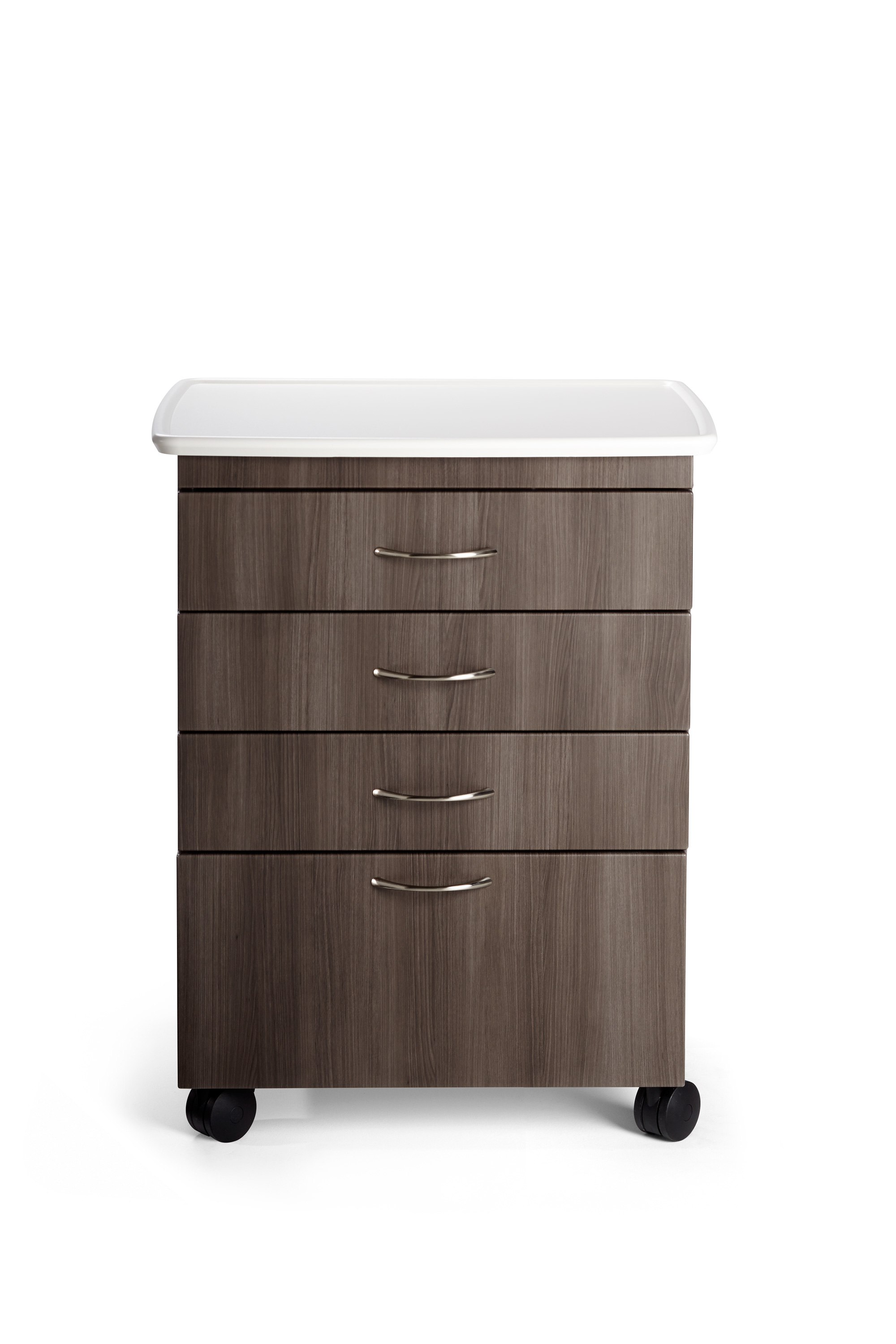

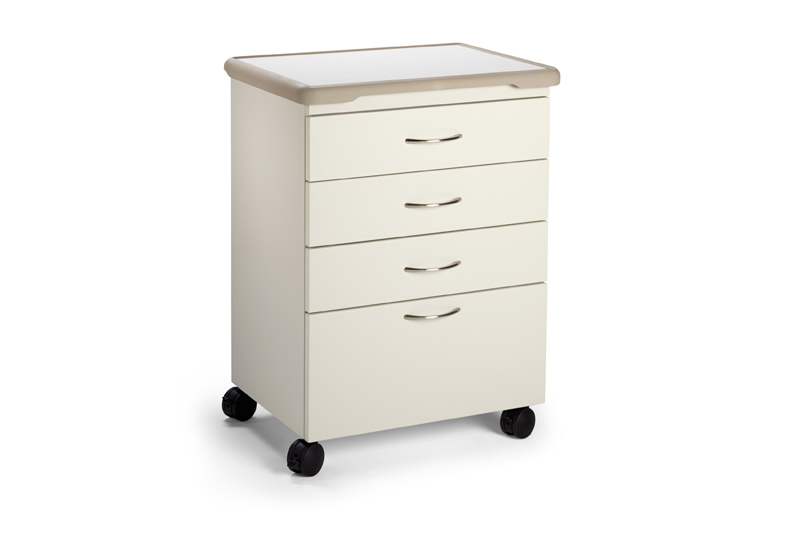

Treatment Your Way
Bring supplies to the point of care with versatile, mobile treatment cabinets.
The Right Size
A convenient 24” wide x 18” deep treatment top
Storage
Three 4-inch drawers and one 8-inch drawer, all with a
one-piece molded insert with rounded corners designed for easy cleaning.
Security
Locks are designed to keep important or hazardous items secured.
Cabinet:
Powder-coated 18-gauge cold-rolled steel; multi-piece shell and frame design; riveted and press-jointed (Tog-L-Loc®)
Door Construction:
Front/Back: 12-mm seamless polymer-covered front; melamine back (Frost in color)
Core: 45 lb LEED IEQ compliant MDF board, 3/4 inch thick. All composite wood material to meet CARB P2 emmision standard of CARB regulation 91320.2
Hinges: Manufacturer's standard Blum® concealed, self-closing, 110º opening, nickel-plated metal, clip-on mount, three adjustment points
Pulls: 128-mm pull offering for Serenity, Transcend and Pinnacle panel style; integrated front-pull design (Cove Style); recessed clear snap-on handle with interchangeable color strips (Renew style)
Drawers:
Deep drawer construction: One-piece molded polystyrene drawer bodies with rounded corners; (Frost in color)
File drawer construction: 18-gauge
cold-rolled steel frame; including suspended file system and file bars
Front/Back: 12-mm seamless polymer-covered front; melamine back (Frost in color)
Core: 45 lb LEED® IEQ-compliant MDF board, 3/4-inch thick. All composite wood material to meet CARB P2 emission standard of CARB regulation 91320.2
Slide: Manufacturer's standard Accuride Aero (100-lb capacity) ball-bearing slides; Accuride Model 3832 (100-lb capacity) for pullout writing surfaces and waste cans; and heavy-duty Accuride Model 3640 (200-lb capacity) slide for file drawers and
heavy-duty pullout shelves
Pulls: 128-mm pull offering for Serenity, Transcend and Pinnacle panel style; integrated front-pull design (Cove style); recessed clear snap-on handle with interchangeable color strips (Renew style)
Locks:
Doors: Manufacturer's standard Timberline, individually mounted, cam-style lock removable lock plug; locks keyed alike with two keys per lock
Drawers: Manufacturer's standard Timberline lock body with removable lock plug with 14-gauge cold-rolled steel pivoting lock bar for central lock system; locks keyed alike with two keys per lock.
Click the link below for the complete CSI Specifications:
Casework Collection CSI Spec- 123570
