With all the benefits of the Preva DC, including exceptional image quality, one-handed movement and drift-free positioning, enjoy the next level of convenience through Preva Plus integration with our Midmark Intraoral Digital Sensor. Midmark Intraoral Digital Sensor achieve the ultimate in digital convenience, allowing captured images to be viewed with Progeny® Imaging Software or with one of several popular practice management and imaging programs.
Integrated Workflow
The Preva Plus is configured with all the features of the Preva DC and 2.0, plus integration with our Midmark Intraoral Digital Sensor, and built-in storage to keep sensors from being damaged or misplaced.
Image Clarity
Preva provides a 0.4-mm focal spot for sharp, well-defined details that allow easy identification of pathology with both film and digital sensors.
Ease of Use
The easy-to-use LCD control panel display with large icons helps to identify target tooth, receptor type and patient size while also offering preprogrammed technique settings.
Drift-free
The proprietary dual-arm braking system helps the head stay exactly where you position it without sagging or drifting.
Ergonomic
The Preva system is designed for seemingly effortless movement and fast one-handed positioning.
Line voltage: 110-230 VAC +/- 10% 50 or 60 Hz
Tube potential: 60, 65 or 70 kVp
Tube current: 4, 5, 6 or 7 mA
Exposure time: 20 ms to 2 seconds
Cone length: 20 cm (8")
Focal spot: 0.4 mm (IEC 60336)
Duty factor: 1:15
Shipping weight (wall mount): 95 lb
Applicable regulations compliance:
21 CFR, UL, IEC
Warranty: 2-year limited
Options: Exposure hand switch; 12" cone; 8" rectangular cone; choice of 56", 66", 76" or 82" (total reach); two-stud mounting plate; metal stud-mounting plate
Minimum ceiling requirement: 86.5" (219.7 cm)

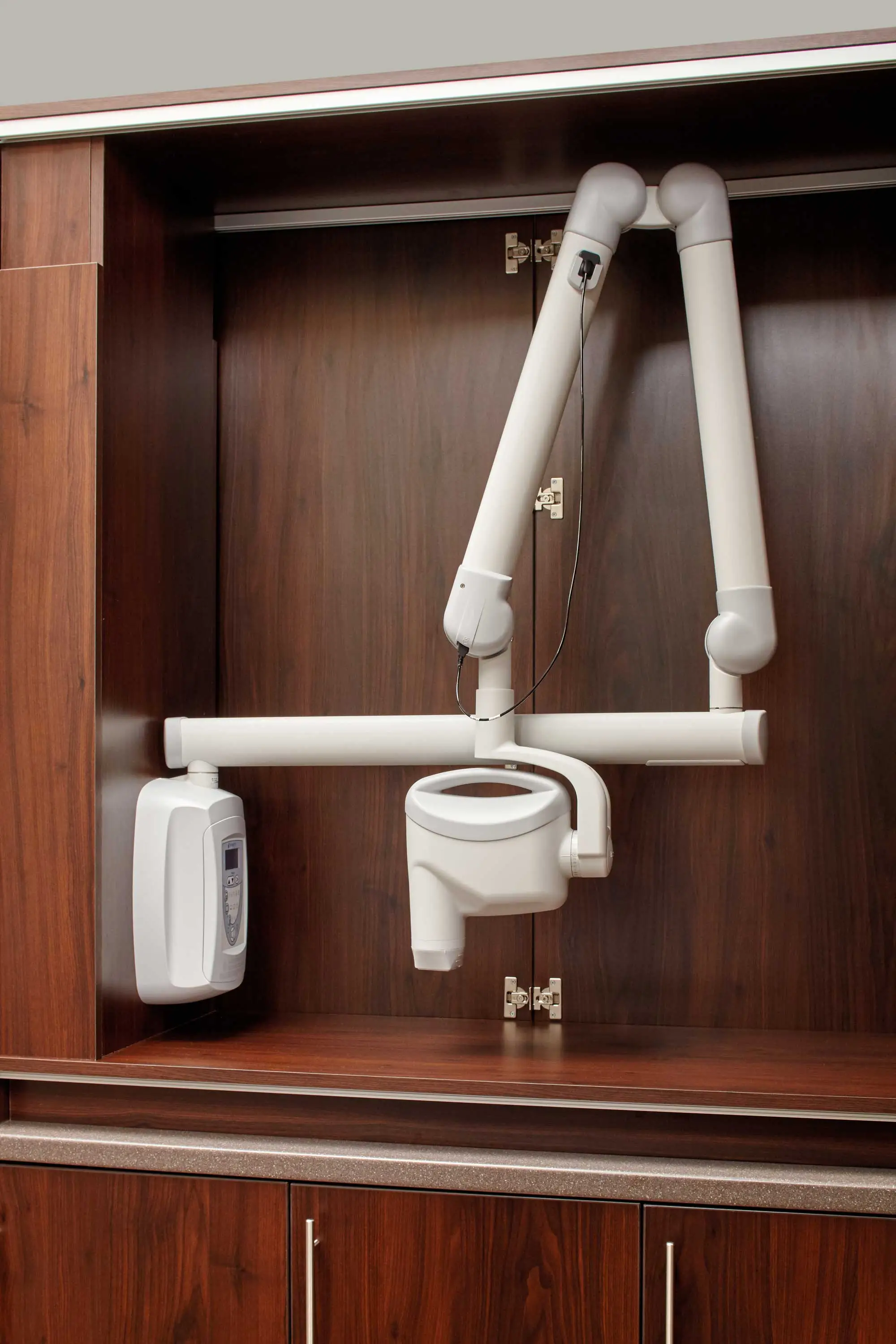

Cabinet pass-through (alternate): 66" arm: 26.75" W x 47.5" D (68 cm x 121 cm); 76" arm: 36.75" W x 47.5" D (93.5 cm x 121 cm)

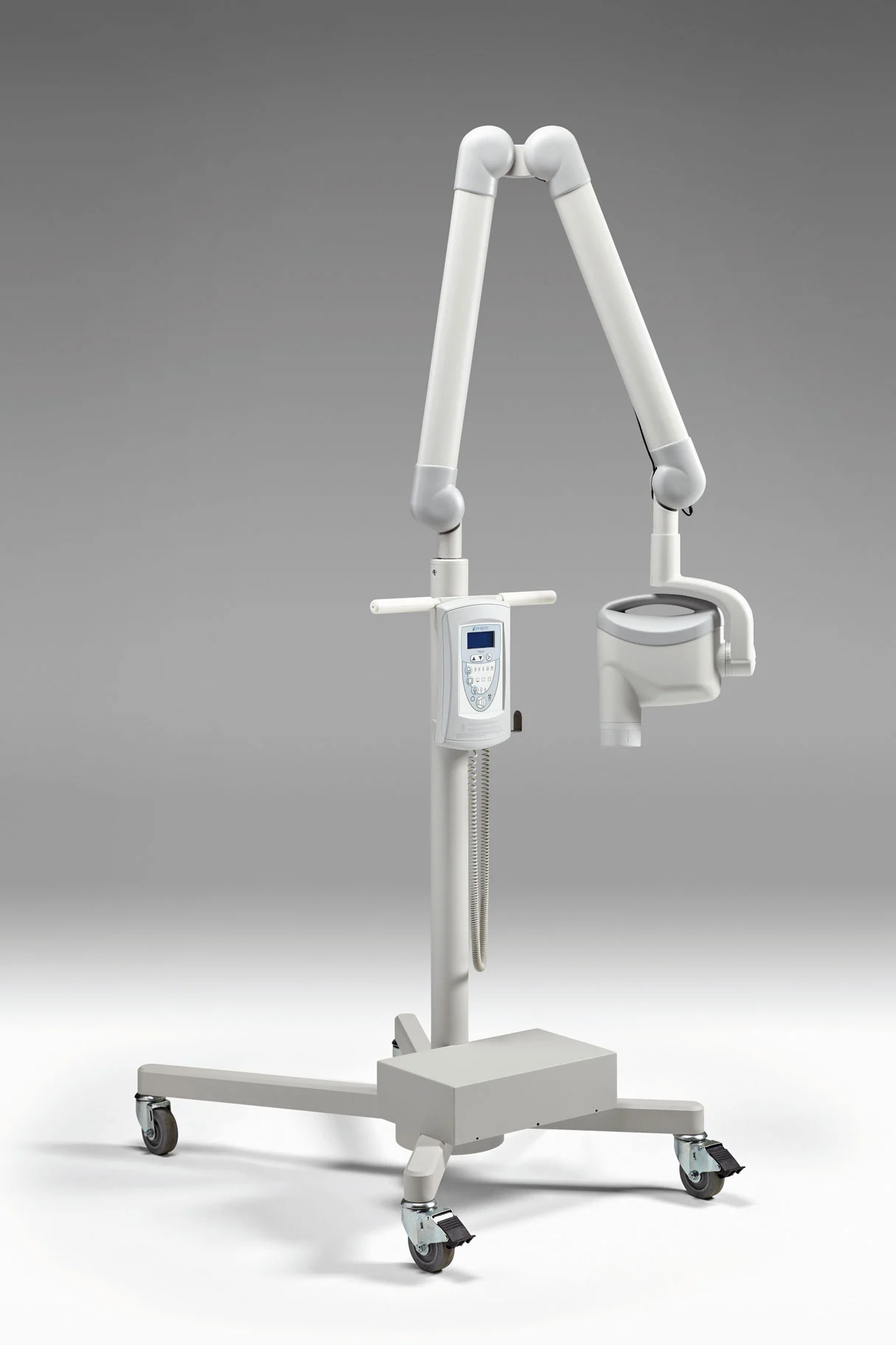

Mobile: Base: 26.9: W x 36" L (68.3 cm x 91.4 cm); arm reach: 56" (142 cm); height: 76.9" (195.3 cm)
For additional specifications, Click Here.
Standard with all Midmark imaging equipment, Progeny Imaging Software supports image acquisition, diagnosis and image handling.
