Overall length w/plug:
20.38" (51.8 cm)

Overall width:
15.3" (38.9 cm)

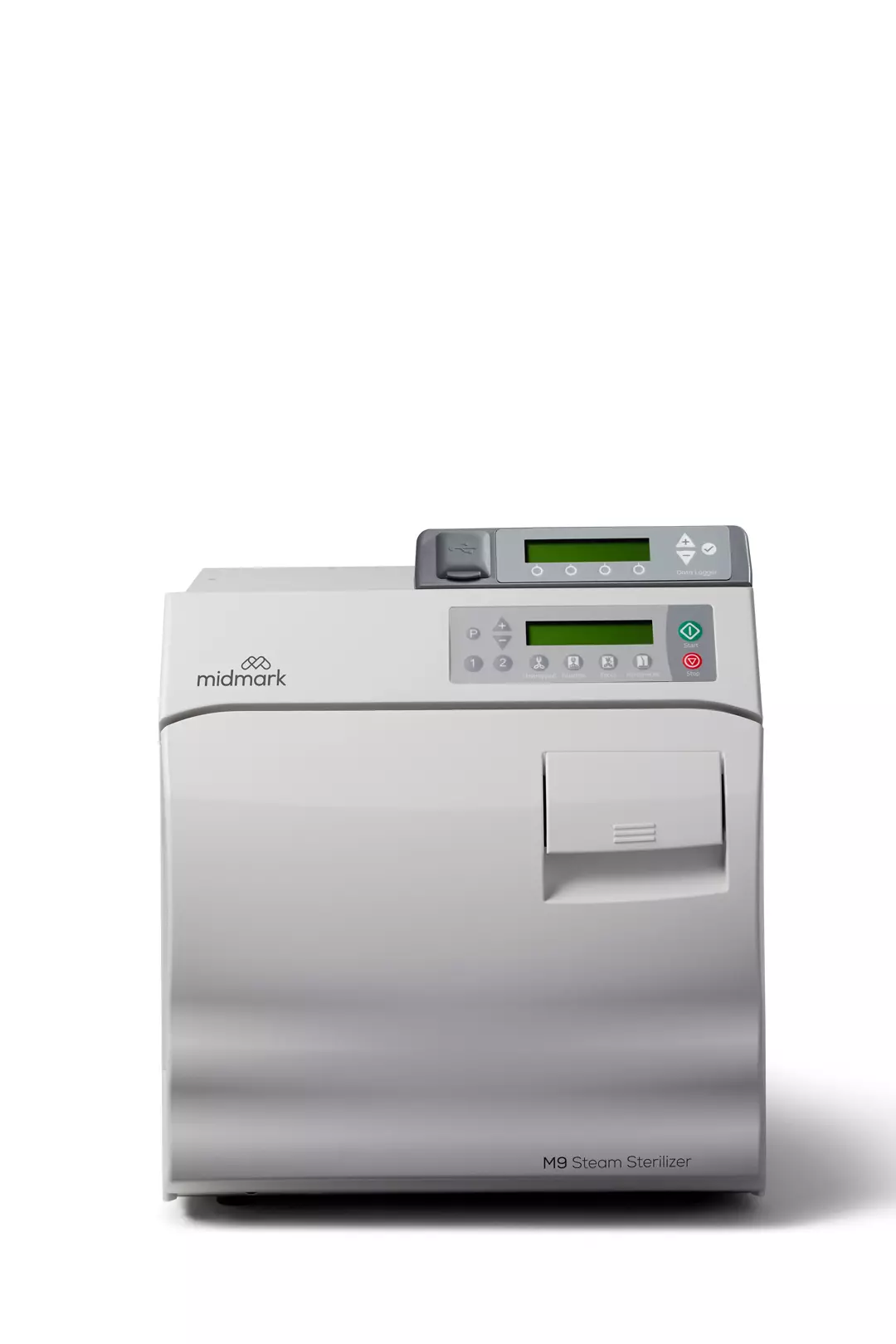

Overall height w/printer:
16.1 in (40.9 cm)

Minimum countertop area:
17.88" D x 15.3" W (45.4 cm x 38.9 cm)

Chamber:
9" diameter (22.9 cm)
15" depth (38.1 cm)
3.5 gal usable volume (13.4 liters)

Trays:
Two large –
7.3" W x 12" L x 0.8" D
(18.6 cm x 30.5 cm x 2.2 cm)

Two small –
5.6" W x 12" L x 0.8" D
(14.3 cm x 30.5 cm x 2.2 cm)

Unit weight:
73 lb (33.1 kg)

Shipping weight:
81 lb (36.7 kg)

Water reservoir capacity:
1.1 gal (4.1 liters)

Electrical requirements:
115 VAC, 50/60 Hz, 15 A single phase
115 VAC has 1,425 W tubular immersion heater
230 VAC, 50/60 Hz, 10 A single phase
230 VAC has 1,500 W tubular immersion heater

Installation: Use on a level, water-resistant material such as laminate, stainless-steel or stone. Allow 2.0" (5.08 cm) on sides and rear, and 5" (12.7 cm) above to allow space to fill reservoir and change the printer paper roll.

Safety standards:
UL listed to US and Canada standards
UL 61010-1, 2nd edition
IEC 61010-2-040, 1st edition
CAN/CSA C22.2 No. 61010-1, 2nd edition
CSA C22.2 No. 61010-2-040-07, Part 2-040, 1st edition

Meets the requirements of ASME Boiler and Pressure Vessel Code.
A separate (dedicated) circuit is recommended for this sterilizer.

Certifications:
IEC 60601-1-2 Edition 4.0 2014-02
CISPR II:2009, A1:2010 Class A, Group 1
IEC 61000-3-2:2014, Part 3-2
IEC 61000-3-3:2014, Part 3-3
ANSI/AAMI ST55:2010(R)2014
ANSI/AAMI/IEC 62304
